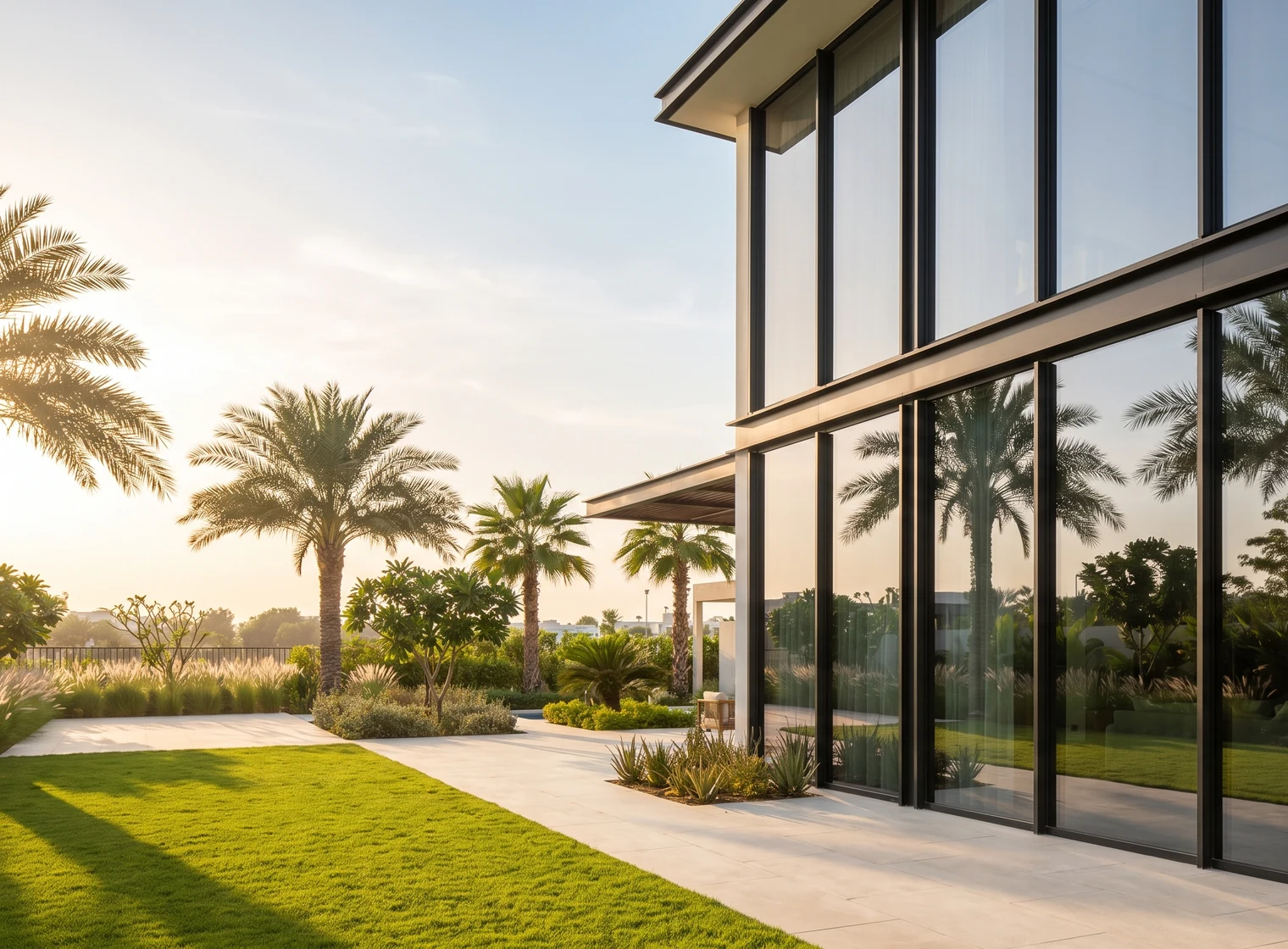

Garden room at a villa
Thermal-break frames and solar-control glass
Schüco systems
A German systems house from Bielefeld, founded in 1951, with aluminium ranges for windows, doors, sliding systems and facades, and its own Middle East company in Dubai. In the UAE it is often the system a consultant or developer names in the specification, and the range is wide enough to carry one sightline and finish from the bedroom window to the curtain wall. We fabricate Schüco profiles to the manufacturer's specification in our Dubai factory and install them ourselves.
- Bielefeld systems house
- since 1951 founded
- Dubai Middle East office
Why choose aluminium windows?
-
Durable EPDM seals
Three contours of EPDM seals keep the glass off the aluminium and close the gap between sash and frame, so dust, humid salt air and wind-driven rain stay outside.
Learn more -
Foamed thermal inserts
Foamed inserts fill the profile chambers and stop air circulating inside them, so less outside heat and street noise passes through the frame into the cooled room.
Learn more -
Polyamide thermal breaks
Glass-filled polyamide thermal breaks up to 40 mm wide keep the outer and inner shells apart, so the frame holds its shape and its insulation through a UAE summer.
Learn more -
Energy-efficient double glazing
Double glazing up to 60 mm thick puts a sealed gap of still air or gas between the hot street and the cooled room, so less heat crosses the glass into the room.
Learn more
What you are choosing with Schüco
-
Since 1951
Systems house
Bielefeld, Germany
-
Dubai office
Regional support
Schüco Middle East in the UAE
-
Thermal break
Profile
Insulating bar through the section
-
One family
Ranges
Windows, doors, sliding and facades
-
Powder or anodised
Finish
RAL colours and anodised tones
Schüco systems by type
The Schüco range, grouped by what each series is for. Figures are the manufacturer's published data, and each card links to its source. Which series fits your opening is settled at the free survey.
Schüco windows
Casement, tilt-and-turn and fixed windows. The series differ in profile depth, the thickest glass they take and how much heat the frame lets through.
All window types-
Window · turn/tilt (inward) · side-hung
Schüco AWS 65
Thermally insulated aluminium window system with a 65 mm basic depth for inward- and outward-opening windows, used as punched openings, ribbon windows or façade insert units.
- Basic depth
- 65 mm
- Uf (frame)
- from 1.9 W/(m²·K)
- Glazing thickness
- up to 55 mm
- Vent weight
- up to 250 kg
- Burglar resistance
- up to RC3
-
Window · turn/tilt (inward) · side-hung
Schüco AWS 70.HI
Highly thermally insulated aluminium window system with a 70 mm basic depth for inward- and outward-opening windows, including turn/tilt vents, bottom-hung toplights and barrier-free window doors.
- Basic depth
- 70 mm
- Uf (frame)
- from 1.5 W/(m²·K)
- Glazing thickness
- up to 62 mm
- Vent weight
- up to 200 kg
- Sound reduction
- up to 48 dB
-
Window · turn/tilt (inward) · side-hung
Schüco AWS 75.SI+
Aluminium window system with a 75 mm basic depth and a higher insulation level, used for punched openings, ribbon windows and façade insert units.
- Basic depth
- 75 mm
- Uf (frame)
- from 0.9 W/(m²·K)
- Glazing thickness
- up to 61 mm
- Vent weight
- up to 250 kg
- Sound reduction
- up to 48 dB
Schüco doors
Entrance, terrace and balcony doors. What sets the series apart is how heavy a leaf they carry, the threshold and the locking options.
All door types-
Door · side-hung inward · side-hung outward
Schüco ADS 70.HI
Thermally insulated aluminium door system for single- and double-leaf entrance doors, inward or outward opening, in residential and commercial buildings.
- Uf (frame)
- from 1.7 W/(m²·K)
- Leaf height
- up to 2500 mm
- Leaf width
- up to 1250 mm
- Leaf weight
- up to 150 kg
- Glazing thickness
- up to 52 mm
-
Door · side-hung inward · side-hung outward
Schüco AD UP 75
Aluminium door system with a 75 mm basic depth for heavily used commercial doors and entrance doors, with a barrier-free zero-level threshold option.
- Basic depth
- 75 mm
- Uf (frame)
- from 1.4 W/(m²·K)
- Leaf height
- up to 3000 mm
- Leaf width
- up to 1400 mm
- Leaf weight
- up to 200 kg
Schüco sliding systems
Sliding and lift-and-slide doors for wide openings onto a terrace or pool. The series differ in panel weight, the width of the meeting stile and the threshold height.
Sliding doors-
Sliding · lift-and-slide
Schüco ASS 50
Thermally insulated aluminium sliding and lift-and-slide system with manual operation and vents up to 3 m wide and 3 m high.
- Uw (window)
- from 1.9 W/(m²·K)
- Vent weight
- up to 400 kg
- Vent width
- up to 3000 mm
- Vent height
- up to 3000 mm
- Glazing thickness
- up to 32 mm
-
Sliding · lift-and-slide
Schüco ASE 60
Thermally insulated aluminium sliding and lift-and-slide system with manual operation, vents up to 3.5 m wide and high, and a 40 mm interlock.
- Uw (window)
- from 1.1 W/(m²·K)
- Vent weight
- up to 500 kg
- Vent width
- up to 3500 mm
- Vent height
- up to 3500 mm
- Interlock face width
- from 40 mm
-
Sliding
Schüco ASS 77 PD.HI
Highly thermally insulated Panorama Design sliding system with a 37 mm interlock and TipTronic electric drive, for large glass walls.
- Uw (window)
- from 1 W/(m²·K)
- Vent weight
- up to 500 kg
- Vent width
- up to 3200 mm
- Interlock face width
- from 37 mm
- Glazing thickness
- up to 60 mm
Schüco folding systems
Bi-fold doors that stack the panels to one side and open the whole wall.
Bi-fold doors-
Folding · integrated side-hung door (option)
Schüco AS FD 75.NI
Non-insulated aluminium folding sliding system with a 75 mm basic depth; the leaves slide to one side and fold into flat, narrow stacks to open a wide aperture.
- Basic depth
- 75 mm
- Vent width
- up to 1500 mm
- Vent weight
- up to 150 kg
- Glazing thickness
- up to 50 mm
- Interlock face width
- from 90 mm
Schüco facade systems
Curtain walling and structural glazing for villas, offices and retail. On a facade the series is chosen by span, wind load and how the glass is held.
Curtain wall glazing-
Facade
Schüco FWS 50
Mullion/transom façade system with a 50 mm face width for curtain walls and skylights, with an option for integrated spandrel safety barriers.
- Face width
- 50 mm
- Uf (frame)
- from 1.5 W/(m²·K)
- Glazing thickness
- up to 62 mm
- Glass/infill weight
- up to 1080 kg
- Watertightness
- RE 1200
Values are the manufacturer's published figures for the series; the actual value depends on the configuration — glass, size and hardware.
Profile Systems
-
Schuco
Learn more about SchucoSchüco aluminium systems carry large panes on slim frames — for villas, apartments and offices where the view matters.
-
GUTMANN
Learn more about GUTMANNGUTMANN systems are offered by Gutmann Middle East LLC, based in Dubai Investments Park: hinged windows and doors, sliding and lift-and-slide doors, curtain walls and glass railings
-
Deceuninck
Learn more about DeceuninckDeceuninck uPVC profiles are designed in Belgium for superior insulation, weather resistance and a sleek finish. A popular choice for energy-efficient homes across Europe
-
Cortizo
Learn more about CortizoCortizo aluminium systems combine precise Spanish engineering with high thermal and acoustic performance. A reliable choice for windows, doors and facades that need to perform in demanding climates
-
Montana 120
Learn more about Montana 120Montana 120 is a thermal-break sliding series from Gulfex (Gulf Extrusion LLC), with the profile extruded here in Dubai. A straightforward choice for sliding windows and balcony doors of ordinary size
-
TB-600
Learn more about TB-600TB-600 is the thermal-break hinged window and door series of Gulfex (Gulf Extrusion LLC). The profile is extruded in Dubai, and the same maker covers sliding, folding and curtain-wall systems
-
ALUK
Learn more about ALUKALUK is an Italian aluminium systems brand known for slim, minimalist frames that maximise glass area without compromising strength. Perfect for architectural projects that call for a light, contemporary look
-
Vetromax
Learn more about VetromaxVetromax combines advanced glazing technology with aluminium framing for maximum light, strength and energy efficiency. A modern solution for panoramic windows and glass facades
-
REHAU
Learn more about REHAUREHAU uPVC systems are engineered in Germany for outstanding thermal insulation, soundproofing and long-term durability. A proven choice for energy-efficient windows and doors worldwide
Visit our window design showroom
See profiles, glass units and hardware in person and meet the engineers who draw your project. Come with the plans or photos of the openings.
The Pinnacle Building · Sheikh Zayed Road
- Address
- The Pinnacle Building, Sheikh Zayed Road, Office 607, Dubai
- Hours
- Mon–Fri: 9:00 – 18:00
Popular ready-made solutions
- Villa glazing
- Classic windows
- French windows
- Tilt-and-turn windows
- Top-hung windows
- Patio door
- Classic door
- Panoramic sliding doors
- Panoramic folding accordion doors
Two-storey villa glazing
Sliding doors to the terrace, windows above
Panoramic villa glazing
Slim frames, glass from floor to ceiling
How a Schüco order runs
- Survey and opening schedule Engineer on site within 48 hours
- Series matched to the opening Window, door, sliding or facade range
- Wind-load calculation for the elevation Signed off before profile is ordered
- Glazing unit set by orientation Solar control where the sun lands
- Fabrication to Schüco's specification Cut and assembled in our Dubai factory
- Installation and handover by our crews Three to five weeks from approved drawing
Let's calculate
the cost of glazing
Get a free calculation for your windows — just leave your number, we'll reply on WhatsApp within 15 minutes.
Profile Options
Consult with a specialist
Profile finish and coating options
Powder coating in any shade of the RAL palette; the colour is confirmed against a physical sample at the survey.
Anodising builds an oxide layer on the profile itself, so the colour belongs to the metal rather than to a film on top of it and cannot peel.
Wood-grain and stone-effect finishes are transferred onto the powder coating. The profile keeps the strength of aluminium and never needs repainting.
Available colours (200+ RAL shades)
- White
- Anthracite
- Brown
- Black
- Grey-anthracite
- Grey
Anodised finishes
- Natural silver
- Champagne
- Light bronze
- Medium bronze
- Dark bronze
- Black anodised
Wood-grain and special effects
- Golden oak
- Walnut
- Dark oak
- Concrete
- Basalt
- Wenge
Articles
Why should you buy aluminium windows?
- They have high strength and durability.
- Aluminium windows are resistant to corrosion.
- Aluminium windows are resistant to deformation.
- The lightweight nature of aluminium windows makes installation easier.
- A modern and stylish appearance.
- These windows require minimal maintenance.
Our main products
Our company manufactures aluminium structures with subsequent installation at the glazing site.
Pricing
Aluminium Windows and Doors Calculator
Choose the options — we’ll send the price on WhatsApp
What are we making
Shape and opening
Size
Width and height: 300–6000 mm. Not sure? Clear the fields — we’ll measure at the free survey.
Width under 300 mm — check that it is in millimetres.
Width over 6000 mm — we’ll confirm it at the survey.
Height under 300 mm — check that it is in millimetres.
Height over 6000 mm — we’ll confirm it at the survey.
Enter a whole number of units, 1 or more.
Glazing unit
Extras
Do you need a windowsill?
Do you need a coloured profile?
Do you need installation?
Frequently asked questions
It depends on the opening, not the badge. Schüco earns its price where the job asks for it: a consultant naming the system, very large or heavy sliding panels, a facade that has to share sightlines with the windows, or tested burglar and acoustic figures. For a standard villa window a well-specified UAE-made system with the right glass and seals does the same job in daily use for less money — at the survey we price both side by side.
For the windows the usual candidates are the thermally broken series such as AWS 70.HI or AWS 75.SI+; for terrace openings, sliding series such as ASE 60 or ASS 77 PD.HI. The final choice follows the size of the openings, the glass build-up the elevation needs and the budget — the cards on this page list what each series is rated for.
Yes — the house publishes curtain walling such as FWS 50 alongside its window and door ranges, which helps when a whole elevation should read as one language of sightlines and finish. The engineering is separate work: bracket layout into the slab, movement joints and drainage of the cavity are calculated for the building, not taken from the window schedule.
We are not a licensee of any European systems house and never describe ourselves as one. The profile, gaskets and hardware come through the manufacturer's supply; the cutting, machining, assembly and glazing happen in our own Dubai factory to their specification. Separately we build our own aluminium windows here — a different product line at a different price, and the quote always says which of the two you are being offered.
