Garden room at a villa
Thermal-break frames and solar-control glass
Vetromax glazing

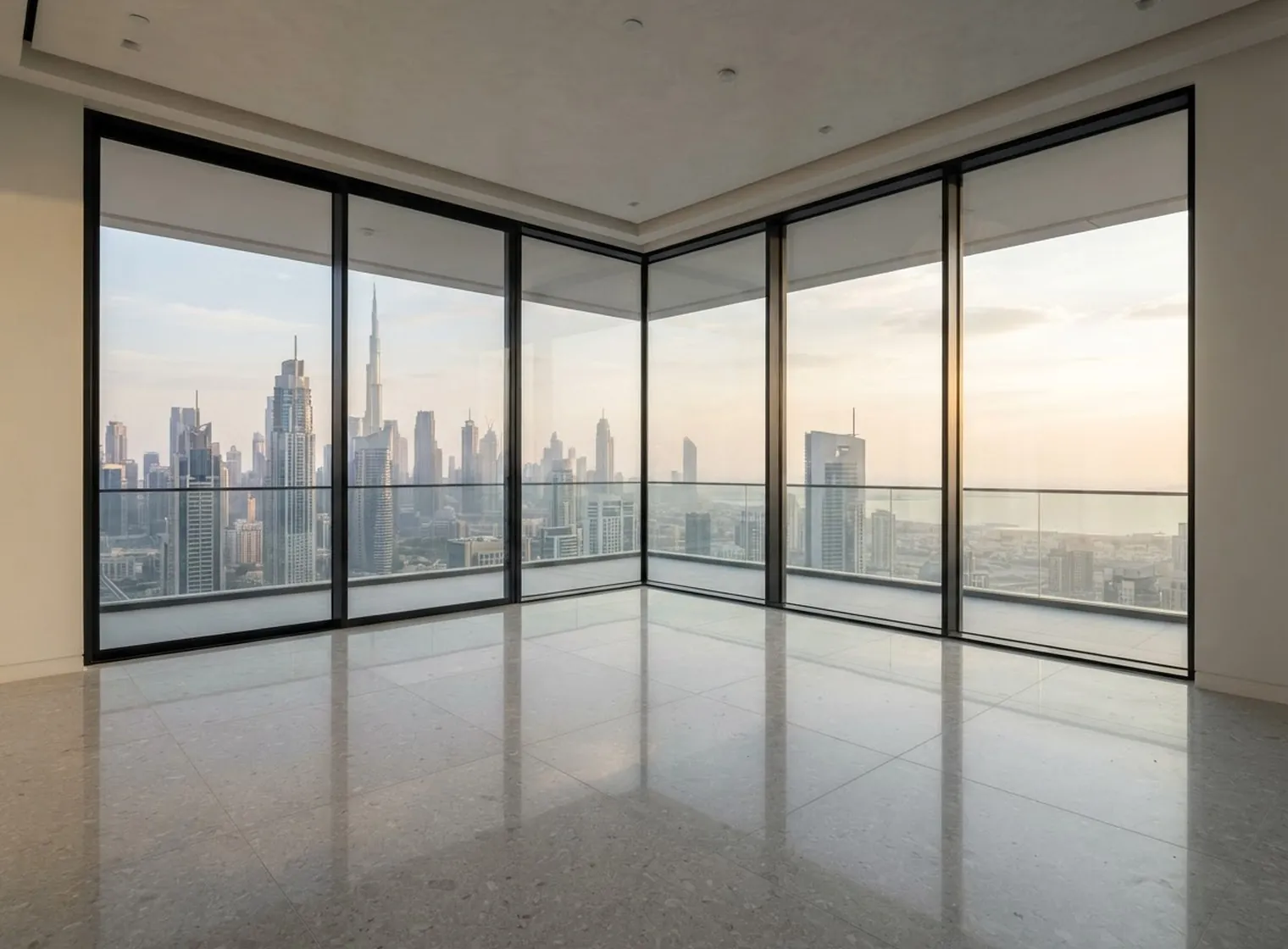

A glazing system for the openings where a window stops behaving like a window and starts behaving like a wall: panoramic living-room glass, corner glazing, and elevations meant to read as one sheet from the outside. On work at that scale the frame becomes the smallest part of the decision — the glass carries the sun, the wind and most of the cost, and the metal is there to hold it and get out of the way. That is where our attention goes: build-up, panel weight, and how the assembly is fixed back into the structure. We fabricate and install it with our own crews across the Emirates.
- wall-sized panes what it is for
- narrow sightlines how much frame you see
- set by calculation panel size
Why choose aluminium windows?
-
Durable EPDM seals
Three contours of EPDM seals keep the glass off the aluminium and close the gap between sash and frame, so dust, humid salt air and wind-driven rain stay outside.
Learn more -
Foamed thermal inserts
Foamed inserts fill the profile chambers and stop air circulating inside them, so less outside heat and street noise passes through the frame into the cooled room.
Learn more -
Polyamide thermal breaks
Glass-filled polyamide thermal breaks up to 40 mm wide keep the outer and inner shells apart, so the frame holds its shape and its insulation through a UAE summer.
Learn more -
Energy-efficient double glazing
Double glazing up to 60 mm thick puts a sealed gap of still air or gas between the hot street and the cooled room, so less heat crosses the glass into the room.
Learn more
What actually decides a panoramic opening
-
Weight, not width
Panel limit
The build-up decides how big a pane gets
-
Fixed and opening
Panels
Not every pane in the run has to move
-
Coated glass
Sun
The pane does the work the frame cannot
-
Back to the slab
Fixing
Brackets calculated for that elevation
-
Laminated glass
Safety
Full-height glass people stand against
Vetromax systems by type
The Vetromax range, grouped by what each series is for. Figures are the manufacturer's published data, and each card links to its source. Which series fits your opening is settled at the free survey.
Vetromax windows
Casement, tilt-and-turn and fixed windows. The series differ in profile depth, the thickest glass they take and how much heat the frame lets through.
All window types-
Window · fixed · side-hung
Vetromax Vetro Casement HS 80P
Thermally broken hidden-sash aluminium system for windows and single- or double-leaf doors, with concealed hinges and slim visible frames.
- Fixed frame width
- 45 mm (fixed aluminium frame)
- Opening sash width
- 60 mm
- Air permeability
- Class 4
- Watertightness
- Class E1200
- Wind load resistance
- Class C5
Vetromax doors
Entrance, terrace and balcony doors. What sets the series apart is how heavy a leaf they carry, the threshold and the locking options.
All door types-
Door · pivot (inward) · pivot (outward)
Vetromax Vetro Pivot VP 75
Thermally broken aluminium pivot door system on a floor pivot, for large entrance leaves opening inward, outward or double-action; also used for pivot windows.
- Floor pivot load
- up to 600 kg
- Glazing thickness
- up to 52 mm
- Maximum leaf size
- 2.5 x 6 m (width x height)
Vetromax sliding systems
Sliding and lift-and-slide doors for wide openings onto a terrace or pool. The series differ in panel weight, the width of the meeting stile and the threshold height.
Sliding doors-
Sliding · multi-track sliding · pocket sliding
Vetromax Vetro Slide
Minimal aluminium sliding system for large glass panels, with a concealed bottom track, multi-track layouts, pocketing and a free-corner option; manual or motorised.
- Visible profile width
- 22 mm
- Maximum glass panel
- 3 x 6 m (up to, width x height)
- Leaf weight
- up to 1500 kg (per leaf)
- Number of tracks
- up to 5 (channels)
- Watertightness
- Class 7A
Vetromax facade systems
Curtain walling and structural glazing for villas, offices and retail. On a facade the series is chosen by span, wind load and how the glass is held.
Curtain wall glazing-
Facade · fixed curtain wall · integrates the brand's casement and top-hung windows, doors and pivot doors
Vetromax Vetro Facade VF CW 35C
Thermally broken aluminium curtain wall with 35 mm mullions and transoms, supplied as cover-cap, structural-silicone or hybrid facade; integrates the brand's windows and doors.
- Mullion / transom width
- 35 mm (depths vary)
- Maximum glass panel
- 2.8 x 5 m (width x height)
- Structural performance test load
- ±2000 Pa (ASTM E 330-14)
- Static water penetration test pressure
- 720 Pa (ASTM E 331-00 (2016))
- Air infiltration test pressure
- 300 Pa (ASTM E283 / E283M-19)
Values are the manufacturer's published figures for the series; the actual value depends on the configuration — glass, size and hardware.
Profile Systems
-
Schuco
Learn more about SchucoSchüco aluminium systems carry large panes on slim frames — for villas, apartments and offices where the view matters.
-
GUTMANN
Learn more about GUTMANNGUTMANN systems are offered by Gutmann Middle East LLC, based in Dubai Investments Park: hinged windows and doors, sliding and lift-and-slide doors, curtain walls and glass railings
-
Deceuninck
Learn more about DeceuninckDeceuninck uPVC profiles are designed in Belgium for superior insulation, weather resistance and a sleek finish. A popular choice for energy-efficient homes across Europe
-
Cortizo
Learn more about CortizoCortizo aluminium systems combine precise Spanish engineering with high thermal and acoustic performance. A reliable choice for windows, doors and facades that need to perform in demanding climates
-
Montana 120
Learn more about Montana 120Montana 120 is a thermal-break sliding series from Gulfex (Gulf Extrusion LLC), with the profile extruded here in Dubai. A straightforward choice for sliding windows and balcony doors of ordinary size
-
TB-600
Learn more about TB-600TB-600 is the thermal-break hinged window and door series of Gulfex (Gulf Extrusion LLC). The profile is extruded in Dubai, and the same maker covers sliding, folding and curtain-wall systems
-
ALUK
Learn more about ALUKALUK is an Italian aluminium systems brand known for slim, minimalist frames that maximise glass area without compromising strength. Perfect for architectural projects that call for a light, contemporary look
-
Vetromax
Learn more about VetromaxVetromax combines advanced glazing technology with aluminium framing for maximum light, strength and energy efficiency. A modern solution for panoramic windows and glass facades
-
REHAU
Learn more about REHAUREHAU uPVC systems are engineered in Germany for outstanding thermal insulation, soundproofing and long-term durability. A proven choice for energy-efficient windows and doors worldwide
Let's calculate
the cost of glazing
Get a free calculation for your windows — just leave your number, we'll reply on WhatsApp within 15 minutes.
How we take a panoramic job
- Structural opening measured, not the old frame Engineer on site within 48 hours
- Wind pressure taken for the height and the face A villa terrace and a fortieth floor differ
- Glass build-up specified before anything else Solar control, laminate, acoustic layer
- Run divided by the weight one pane may reach One more upright beats a pane nobody can lift
- Delivery and lifting planned with production How the glass reaches the floor it belongs on
- Assembly in Dubai, installation by our crews Three to five weeks from the approved drawing
Popular ready-made solutions
- Villa glazing
- Classic windows
- French windows
- Tilt-and-turn windows
- Top-hung windows
- Patio door
- Classic door
- Panoramic sliding doors
- Panoramic folding accordion doors
Two-storey villa glazing
Sliding doors to the terrace, windows above
Panoramic villa glazing
Slim frames, glass from floor to ceiling
Visit our window design showroom
See profiles, glass units and hardware in person and meet the engineers who draw your project. Come with the plans or photos of the openings.
The Pinnacle Building · Sheikh Zayed Road
- Address
- The Pinnacle Building, Sheikh Zayed Road, Office 607, Dubai
- Hours
- Mon–Fri: 9:00 – 18:00
Our main products
Our company manufactures aluminium structures with subsequent installation at the glazing site.
Why should you buy aluminium windows?
- They have high strength and durability.
- Aluminium windows are resistant to corrosion.
- Aluminium windows are resistant to deformation.
- The lightweight nature of aluminium windows makes installation easier.
- A modern and stylish appearance.
- These windows require minimal maintenance.
Articles
Profile Options
Consult with a specialist
Profile finish and coating options
Powder coating in any shade of the RAL palette; the colour is confirmed against a physical sample at the survey.
Anodising builds an oxide layer on the profile itself, so the colour belongs to the metal rather than to a film on top of it and cannot peel.
Wood-grain and stone-effect finishes are transferred onto the powder coating. The profile keeps the strength of aluminium and never needs repainting.
Available colours (200+ RAL shades)
- White
- Anthracite
- Brown
- Black
- Grey-anthracite
- Grey
Anodised finishes
- Natural silver
- Champagne
- Light bronze
- Medium bronze
- Dark bronze
- Black anodised
Wood-grain and special effects
- Golden oak
- Walnut
- Dark oak
- Concrete
- Basalt
- Wenge
Pricing
Aluminium Windows and Doors Calculator
Choose the options — we’ll send the price on WhatsApp
What are we making
Shape and opening
Size
Width and height: 300–6000 mm. Not sure? Clear the fields — we’ll measure at the free survey.
Width under 300 mm — check that it is in millimetres.
Width over 6000 mm — we’ll confirm it at the survey.
Height under 300 mm — check that it is in millimetres.
Height over 6000 mm — we’ll confirm it at the survey.
Enter a whole number of units, 1 or more.
Glazing unit
Extras
Do you need a windowsill?
Do you need a coloured profile?
Do you need installation?
Frequently asked questions
Hotter than a small window, and the honest lever is the glass rather than the frame. Once the pane is the wall, almost everything entering the room comes through it, so the coating, the cavity and the tint carry the load, backed up by whatever shades the elevation — an overhang, a balcony above, a screen. The decision belongs to the orientation: an east bedroom takes a morning hour of sun, a west living room takes the whole afternoon, and they should not be given the same specification just because they are the same size.
Less a catalogue question than a logistics one. A big unit is heavy, and its weight has to be lifted off a lorry, taken to the right floor and set into the opening without touching the corners; the size that survives that journey is usually smaller than the size a drawing would allow. So we work backwards — build-up first, then the weight that follows, then whether the access on your site can take it. Where it cannot, the run gets another upright and nobody misses it.
Ask it before production, not after. Inside is straightforward; the outside face is what needs planning, and the answer differs by building — a villa may be reachable from a terrace or a ladder, an apartment usually depends on the tower's own facade access, and a fixed pane above head height needs someone to be able to get to it. That sometimes changes the layout: one opening panel in the run, placed where the cleaner needs it, is worth more than a purely fixed elevation.
Often, and the limit is the wall rather than the glazing. Making an opening taller or wider means cutting into structure, which is a building matter with drawings and approvals behind it, not something to settle on a site visit. Where the opening stays as it is, the gain comes from replacing bulky frames and heavy intermediate uprights with fewer, narrower ones — less dramatic than a brochure, but achievable without touching the structure. The survey tells you which of the two you are looking at.
