Pivot doors

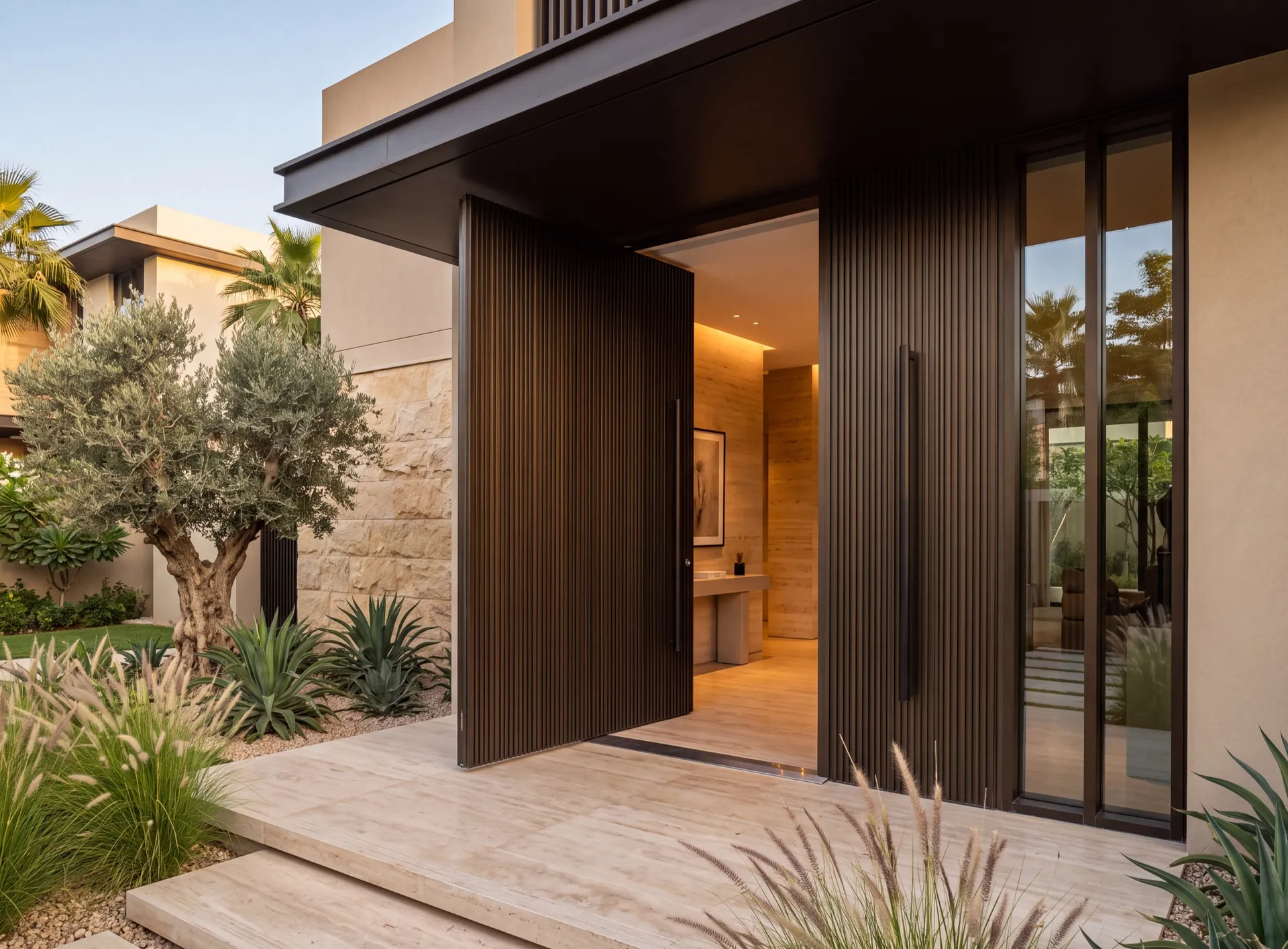

A pivot door turns about a point rather than along a line of hinges. A pin housed in a box set into the floor and a bearing in the head hold the leaf, and it rotates about an axis that runs inside its own width. Nothing is bolted to the side of the frame, so there is no hinge to overload — the weight travels straight down into the slab. That is why a pivot leaf can be far larger and heavier than a hinged one, and why it is normally chosen as the arrival gesture at a villa or a lobby rather than as a door in constant everyday use.
- about an axis how the leaf turns
- a box in the slab what carries the weight
- offset or centred pivot position
The anatomy of a pivot door
-
Cast in
Floor box
Set before the screed goes down
-
Offset or centred
Pivot axis
Offset gives a wider clear passage
-
Bearing only
Head fixing
Locates the leaf, carries no load
-
Sweeps both ways
Sealing
Brushes and a drop seal, not one gasket
-
Stiffened
Leaf frame
Internal ribs keep a big panel flat
Let's calculate
the cost of glazing
Get a free calculation for your windows — just leave your number, we'll reply on WhatsApp within 15 minutes.
Why choose aluminium windows?
-
Durable EPDM seals
Three contours of EPDM seals keep the glass off the aluminium and close the gap between sash and frame, so dust, humid salt air and wind-driven rain stay outside.
Learn more -
Foamed thermal inserts
Foamed inserts fill the profile chambers and stop air circulating inside them, so less outside heat and street noise passes through the frame into the cooled room.
Learn more -
Polyamide thermal breaks
Glass-filled polyamide thermal breaks up to 40 mm wide keep the outer and inner shells apart, so the frame holds its shape and its insulation through a UAE summer.
Learn more -
Energy-efficient double glazing
Double glazing up to 60 mm thick puts a sealed gap of still air or gas between the hot street and the cooled room, so less heat crosses the glass into the room.
Learn more
What has to happen before the screed is laid
- Pivot position agreed with the architect Offset or centre changes the clear width
- Floor box coordinated with the builder It goes in before tiling, never after
- Head detail checked against the lintel The bearing needs something solid above it
- Leaf build-up and finish chosen Cladding, timber-look, glass or solid panel
- Sealing strategy for an external leaf Drop seal at the base, brushes at the jambs
- Closing speed and hold-open set A heavy leaf is never left to swing free
Profile Systems
-
Schuco
Learn more about SchucoSchüco aluminium systems carry large panes on slim frames — for villas, apartments and offices where the view matters.
-
GUTMANN
Learn more about GUTMANNGUTMANN systems are offered by Gutmann Middle East LLC, based in Dubai Investments Park: hinged windows and doors, sliding and lift-and-slide doors, curtain walls and glass railings
-
Deceuninck
Learn more about DeceuninckDeceuninck uPVC profiles are designed in Belgium for superior insulation, weather resistance and a sleek finish. A popular choice for energy-efficient homes across Europe
-
Cortizo
Learn more about CortizoCortizo aluminium systems combine precise Spanish engineering with high thermal and acoustic performance. A reliable choice for windows, doors and facades that need to perform in demanding climates
-
Montana 120
Learn more about Montana 120Montana 120 is a thermal-break sliding series from Gulfex (Gulf Extrusion LLC), with the profile extruded here in Dubai. A straightforward choice for sliding windows and balcony doors of ordinary size
-
TB-600
Learn more about TB-600TB-600 is the thermal-break hinged window and door series of Gulfex (Gulf Extrusion LLC). The profile is extruded in Dubai, and the same maker covers sliding, folding and curtain-wall systems
-
ALUK
Learn more about ALUKALUK is an Italian aluminium systems brand known for slim, minimalist frames that maximise glass area without compromising strength. Perfect for architectural projects that call for a light, contemporary look
-
Vetromax
Learn more about VetromaxVetromax combines advanced glazing technology with aluminium framing for maximum light, strength and energy efficiency. A modern solution for panoramic windows and glass facades
-
REHAU
Learn more about REHAUREHAU uPVC systems are engineered in Germany for outstanding thermal insulation, soundproofing and long-term durability. A proven choice for energy-efficient windows and doors worldwide
Popular ready-made solutions
- Villa glazing
- Classic windows
- French windows
- Tilt-and-turn windows
- Top-hung windows
- Patio door
- Classic door
- Panoramic sliding doors
- Panoramic folding accordion doors
Two-storey villa glazing
Sliding doors to the terrace, windows above
Panoramic villa glazing
Slim frames, glass from floor to ceiling
The honest downside
Why a pivot door is not for every entrance
A pivot leaf turns inside its own width, so part of the opening is always taken by the leaf standing edge-on when it is open. A centred pivot splits the passage in two; an offset pivot gives one wider side, but not the clear width a hinged leaf of the same size would leave.
Sealing is assembled from brushes and a drop seal rather than one compressed gasket, the floor box has to be cast in before the screed, and a large leaf carries real momentum in a gust. On an exposed entrance used many times a day, those details add up.
For a front door that is opened constantly and has to seal tightly against dust and cooled air, a hinged door does the job with simpler hardware. A pivot door remains the right choice as a statement entrance, where the leaf is taller and heavier than hinges should carry and the arrival matters as much as the seal.
Consider instead
Hinged doors
Frequently asked questions
Larger than anything you would hang on hinges, because the constraint changes. A hinged leaf is limited by what the jamb and its fixings will take in shear; a pivot leaf sits on a bearing in the floor, so the question becomes the capacity of that box, the stiffness of the leaf itself against twisting, and whether the slab beneath it is sound. We size all three from the leaf you actually want rather than offering a catalogue maximum.
It can be made to, but it takes more work than a hinged door and it is worth being straight about why. A hinged leaf closes into a rebate and compresses one continuous gasket. A pivot leaf swings through the frame line, so part of it moves outward as the rest moves inward, and no single gasket can wrap it. Sealing is assembled instead from brush seals at the jambs and head and a drop seal that lowers onto the floor as the door closes — effective, but it is a set of details rather than one.
It becomes a cutting job. The box has to sit at a fixed level relative to the finished floor, and it needs depth beneath it, so retro-fitting means breaking out tile and screed at the exact point where the entrance is most visible. Where the slab turns out to be too shallow, the design shifts to a top-hung pivot or back to a hinged leaf. This is the single reason we ask to be involved with pivot doors long before we would need to be for any other type.
Only with the wind taken seriously in the specification. A large leaf is a large sail, and once it is moving it carries real momentum — a gust catching an open pivot door will find the bearing and the head. What makes it safe is speed control and a defined hold-open position, so the leaf cannot accelerate or slam. In genuinely exposed locations we also recommend a recessed or screened entrance, which is a common enough arrangement in villa architecture here anyway.
