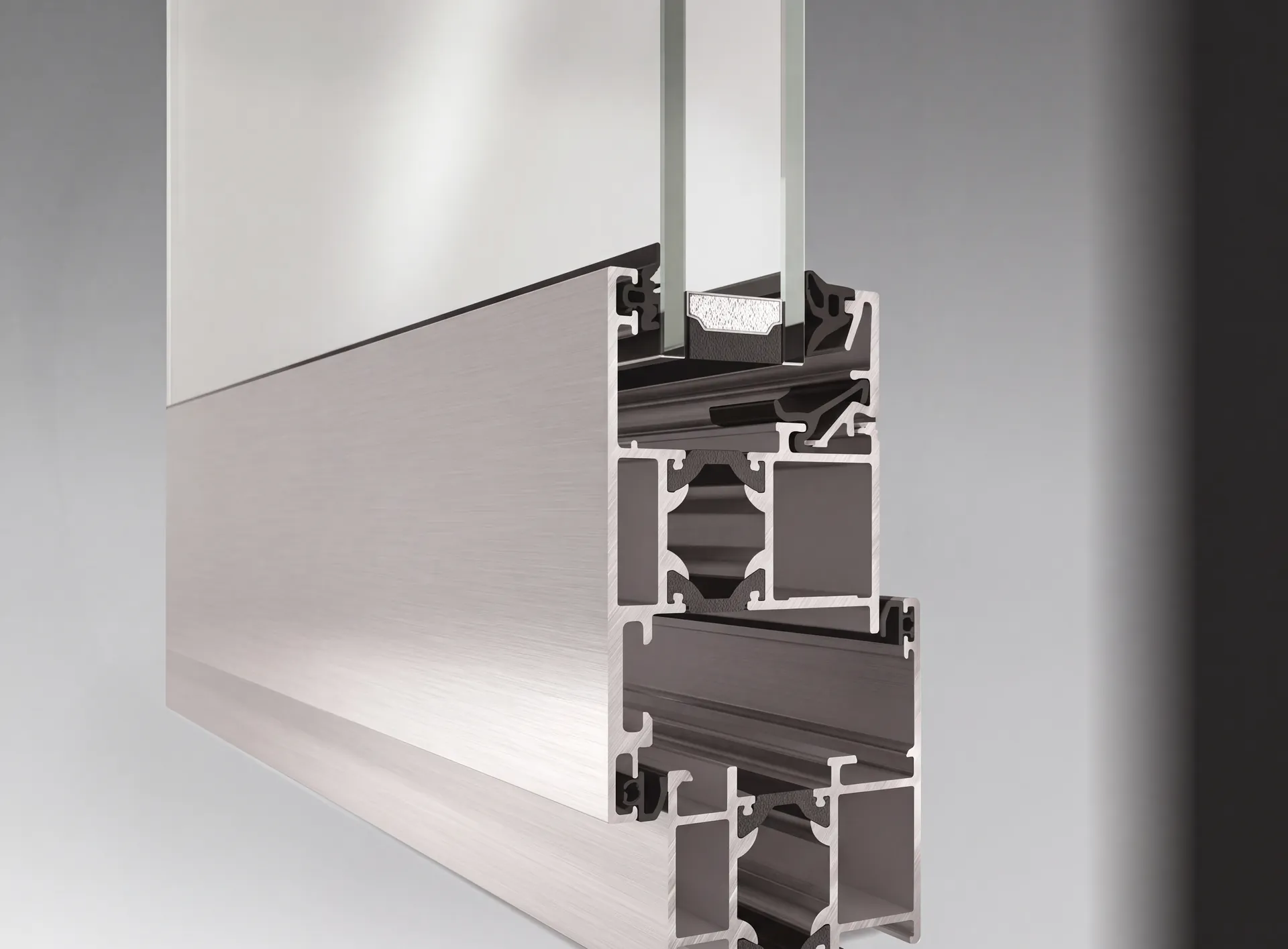

Cross-section of the Schüco AWS 70 window profile with thermal break and insulating glass
  • PREMIUM SEGMENT
  • THERMAL BREAK

SCHÜCO AWS 70

Schüco AWS 70.HI is a thermally broken window system with a 70 mm basic depth that takes glazing units up to 62 mm thick. Slim mullions and sash lines make the frame part of the facade design, while the profile is built for daily use in the UAE climate.

  • 70 mm basic depth
  • up to 62 mm glazing unit
  • up to 200 kg sash weight
Request a quote

Technical specifications

  • from 1.5

    Uf, W/m²·K

    Frame thermal insulation

  • 70 mm

    Profile depth

    Outer frame

  • 62 mm

    Max. glazing unit

    Infill thickness

  • 200 kg

    Sash weight

    Maximum, depends on fittings

  • 91 mm

    Visible width

    Frame + sash, minimum

Methods of Opening

Scheme: single leaf swinging outwards
Outwards
Scheme: single leaf swinging inwards
Inwards
Scheme: two leaves without a fixed mullion
French doors
Scheme: two leaves swinging in opposite directions
Double swing
Scheme: two leaves sliding sideways
Sliding

Where AWS 70 fits

Typical applications in the UAE

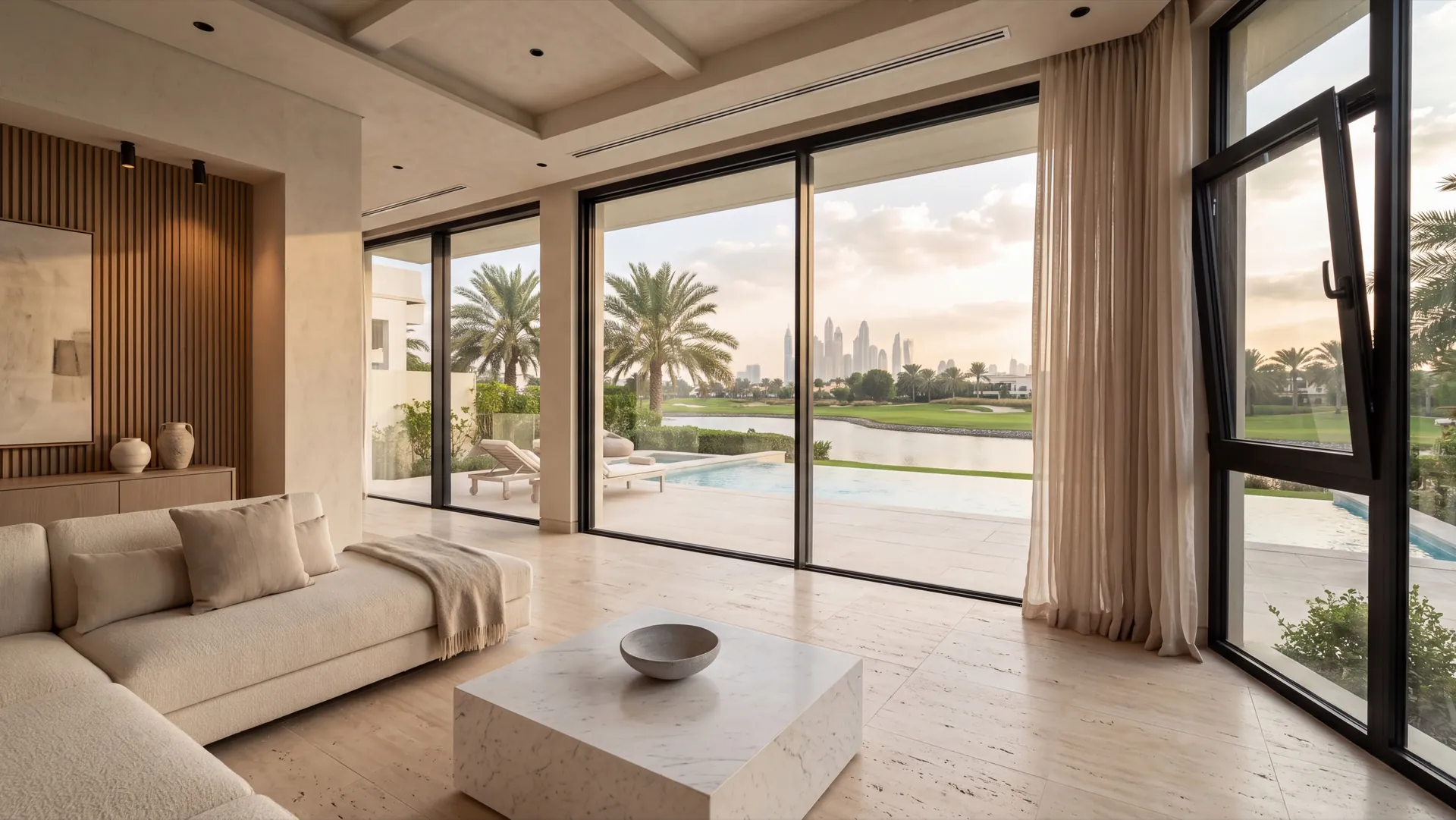

  • Villa living room in Emirates Hills with floor-to-ceiling Schüco AWS 70 glazing overlooking the marina Villa, Emirates Hills — floor-to-ceiling glazing

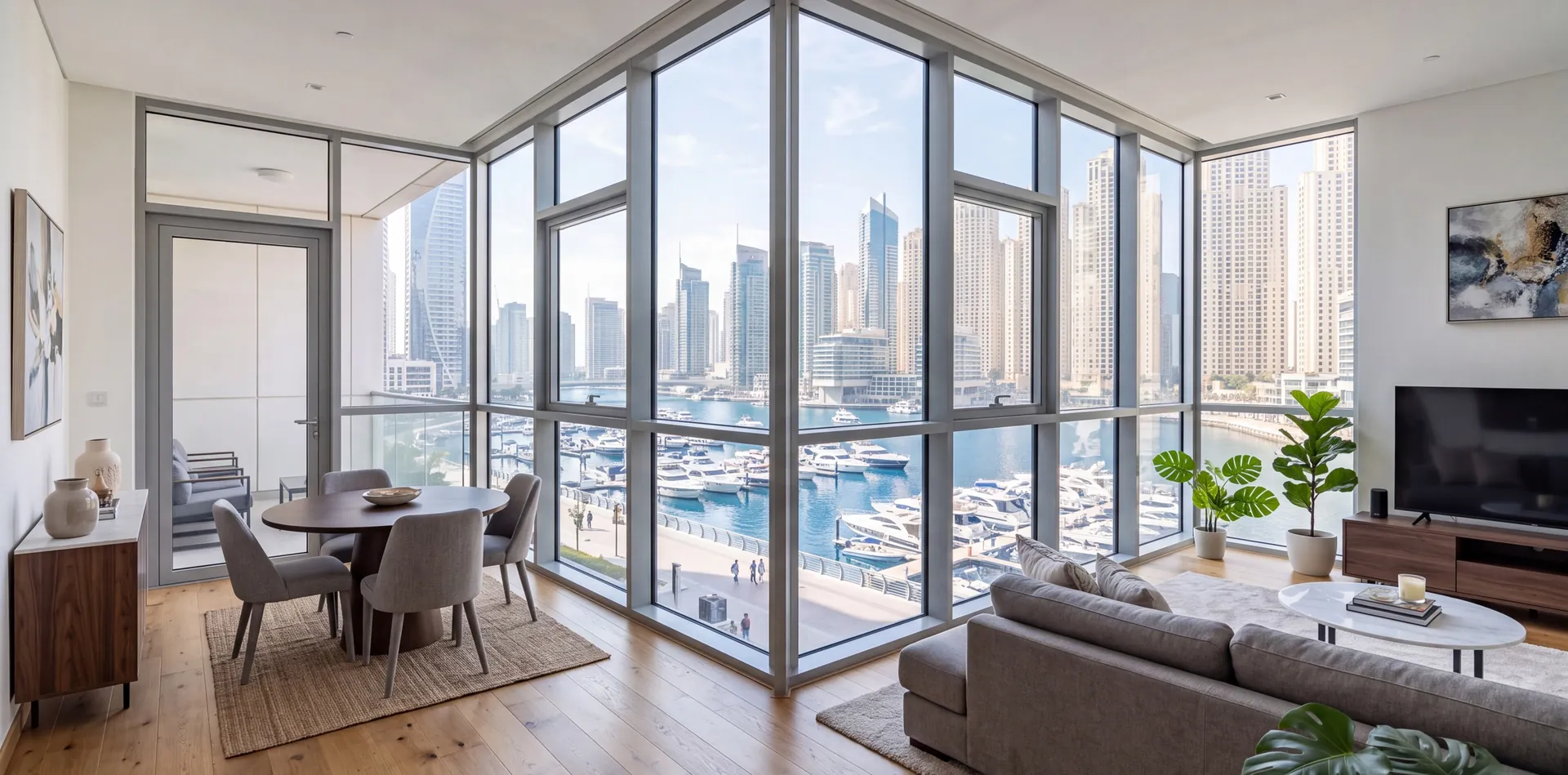

  • Dubai Marina apartment interior with floor-to-ceiling aluminium windows overlooking the marina Apartment, Dubai Marina — full-height windows

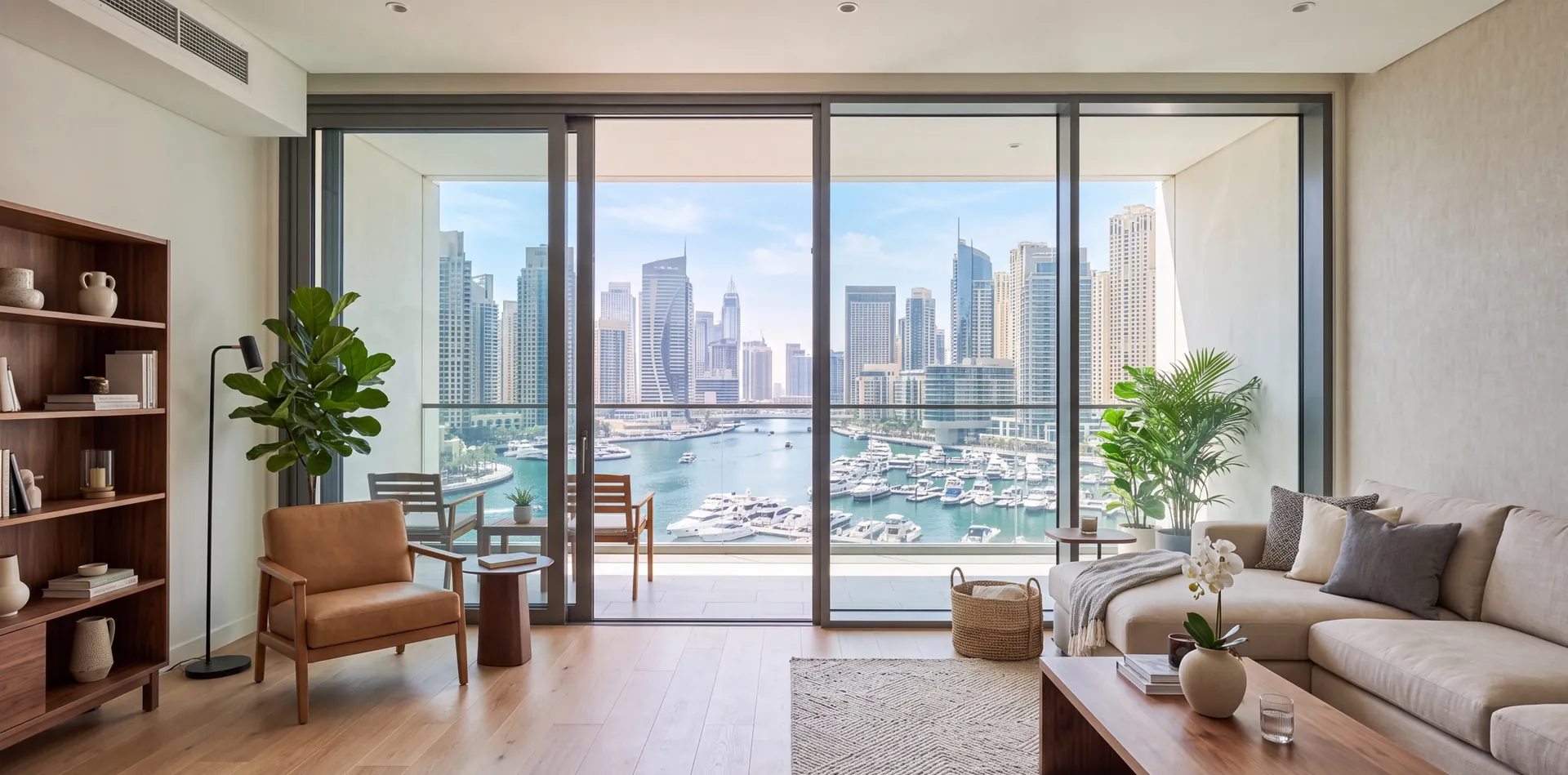

  • Living room of a Dubai Marina apartment with aluminium sliding windows onto the balcony Apartment, Dubai Marina — sliding windows to the balcony

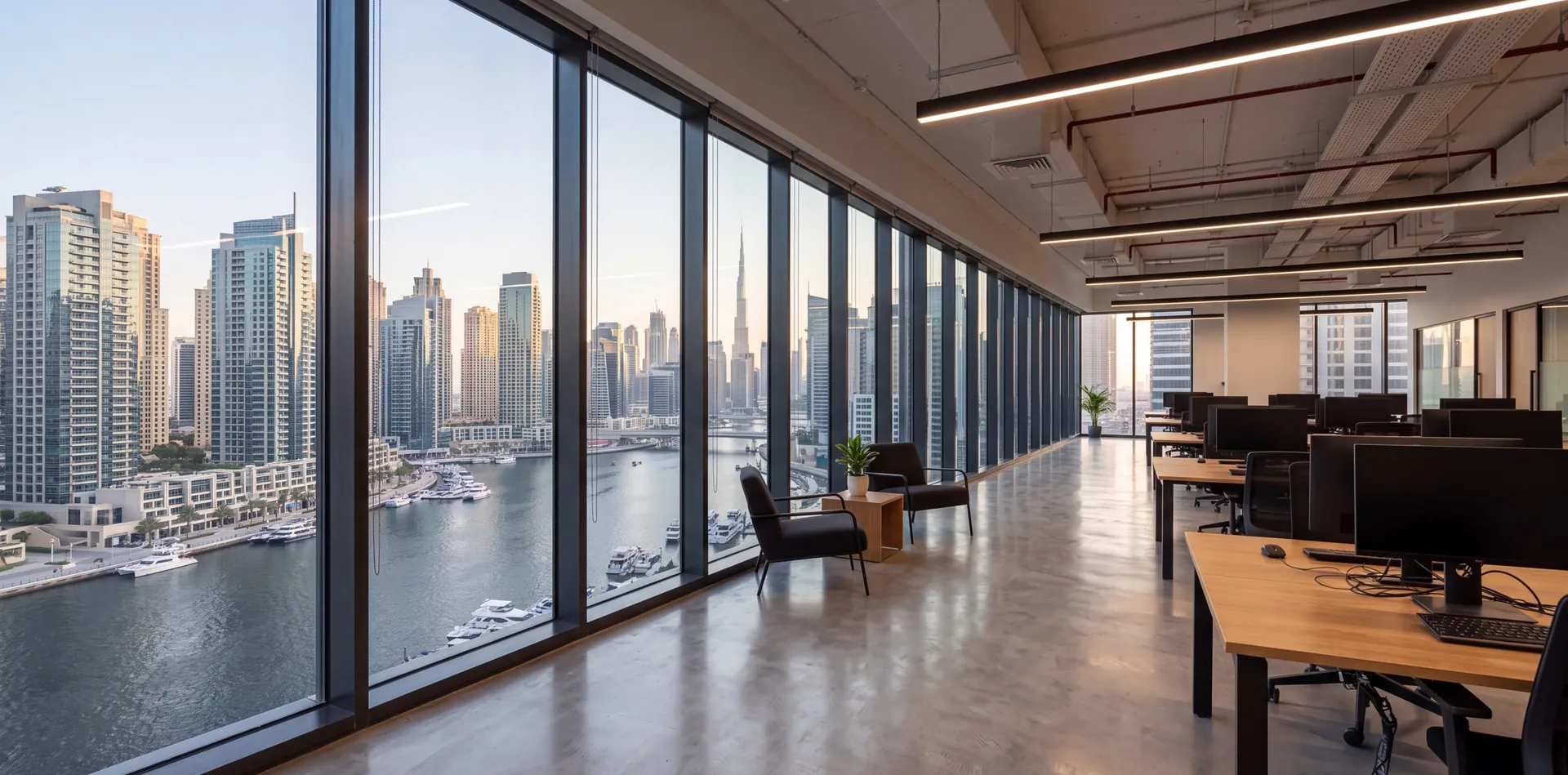

  • Business Bay office interior with an aluminium framed glazing wall facing the city towers Office, Business Bay — glazing wall

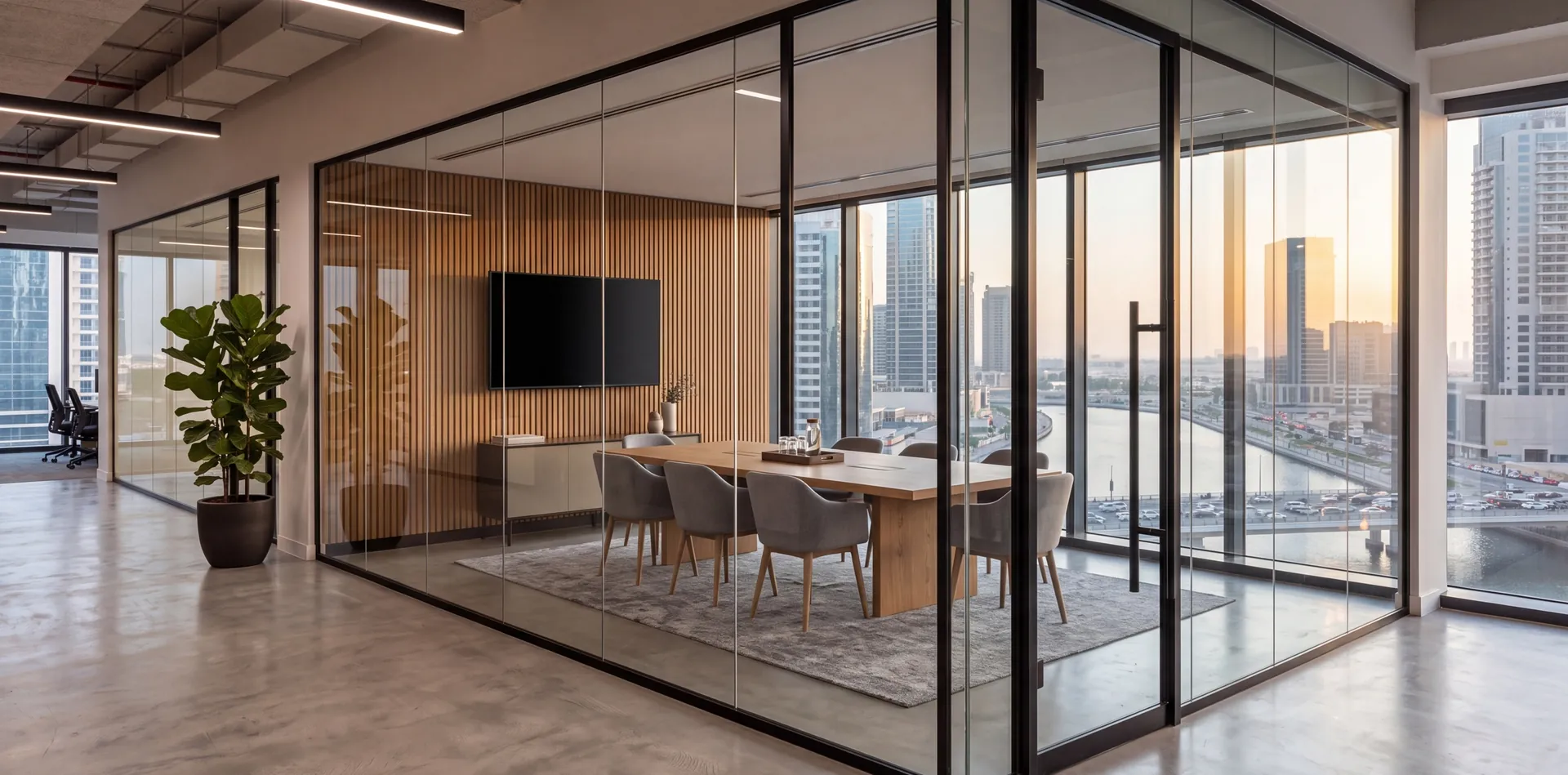

  • Meeting room behind a full-height aluminium glazed partition in a Business Bay office Office, Business Bay — glazed partition

Colours and finishes

The full RAL palette and wood-effect powder finishes

Standard RAL colours

  • RAL 9016
  • RAL 9006
  • RAL 7016
  • RAL 9005
  • RAL 8017
  • RAL 3004

Wood-effect powder finish

  • Golden oak
  • Dark walnut
  • Wenge

Comparison with other systems

How AWS 70 compares with the other systems in the range

Comparison with other systems
Specification Schüco AWS 70 Schüco AWS 50 Reynaers CS 77
Uf of frame, from, W/m²·K 1.5 2.5 1.8
Profile depth 70 mm 50 mm 77 mm
Max. glazing unit 62 mm 40 mm 63 mm

Request a quote for the Schüco AWS 70 system

An engineer will come out to measure within 48 hours — free and with no obligation.
